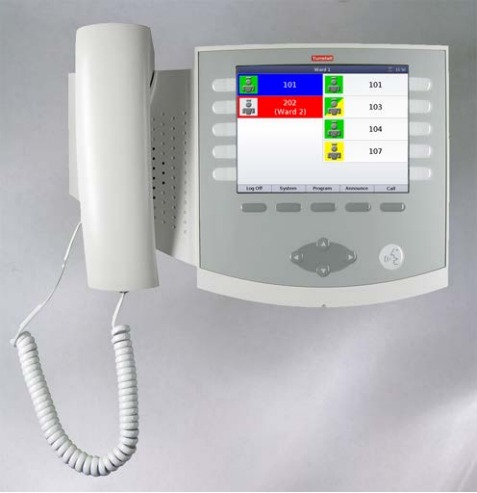

ComStation BUS-C (77 0605 50)
The ComStationBUS-C is a ward console for the nurse station,
designed for answering and handling calls while supporting the nursing service.
Equipped with a microphone, loudspeaker, and handset, it enables smooth speech communication
and efficient ward management.
General Description
The ComStationBUS-C is operated via select buttons and
navigation keys, complemented by a 5.7” colour-graphic multifunction display
(640×480, LED illuminated). It also supports system messages and additional info display.
Thanks to its intelligent speech processor, it ensures excellent speech quality and intelligibility
in all operating modes.
The console can be flexibly adapted through various configuration options in the
nurse call system’s control unit, making it ideal for modern nursing requirements.
Designed for desktop or wall mounting, it integrates easily into existing infrastructures.
Specification
- Ward console configured for standard ward operation
- Call answering and handling with automatic priority-based answering
- Supports announcements, ward coupling and shift enabling/disabling
- System messages displayed on 5.7” colour display
- Operation with select buttons (soft keys) and foil keypad
- Handset or hands-free speech operation
- Output for staff presence and external call tone
- Connection to OSYnet group bus via ComStation connection socket
- Future expansion-ready
Technical Data
- Dimensions (HxWxD): 55 × 273 × 185 mm
- Colour: Light grey (RAL 7035)
- Housing material: ABS
- Power supply: 24 V DC
Order Information
| Order Number | Product Name | Notes |
|---|---|---|
| 77 0605 50 | ComStationBUS-C | Ward console with speech, colour display, nurse call functions |
| 77 0452 30… | Connection socket ComStation | Required accessory, see relevant data sheet |
