General Description

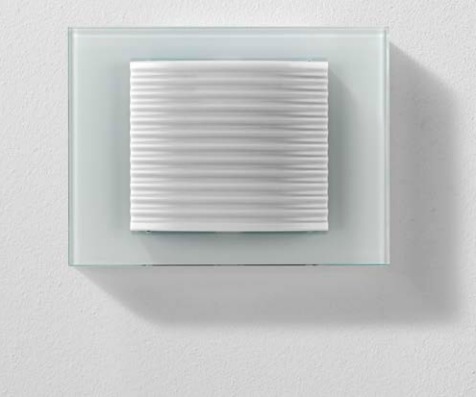

The ControlTerminal includes a built-in room lamp with a decorative glass frame,
replacing the need for a separate lamp in the corridor.
It is designed for mounting in standard 2-gang back boxes.
An additional installation kit (77 0960 00) is required.
Configuration parameters are set via the ControlTerminal ConfigSet software
(77 0920 00).

The terminal integrates with the OSYnet group bus and RAN room bus
for direct connection of signaling and control devices.
Even in the event of a system fault, the basic light-call function remains available.

System Characteristics

• Compatible with Flamenco systems (with or without speech)
• Room bus (RAN) connection for additional devices
• Plug-and-play installation with minimal downtime
• Identification for up to 6 beds
• Shared peripherals with systems with and without speech
• Integrated room lamp with 4 light sections for calls, staff presence, and WC calls

Specifications

• Surface mounting with plug-in electronic components
• Integrated connection field for simplified wiring
• Function monitoring with status indication
• No data loss during power failure
• 4 light sections with long-life, energy-saving LED modules
• LED modules are pluggable for easy replacement and customizable colors
• Protected by utility patent (DPMA) and design patent (DPMA)

Optical Signalling

• LED Red: Calls
• LED Green: Staff Group 1
• LED Yellow: Staff Group 2
• LED White: WC call
