Corridor Display Alpha 16 (77 01×0 00)

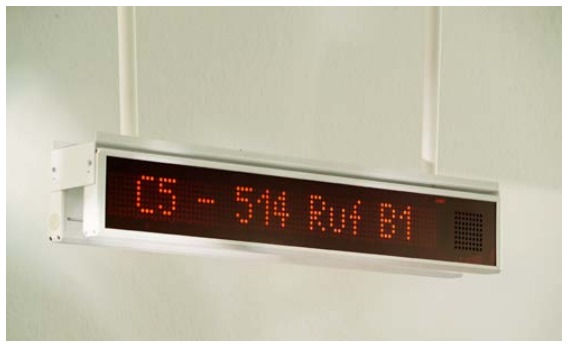

The Corridor Display Alpha 16 (77 0150 00 /
77 0160 00) is a modern nurse call corridor display
designed for alphanumeric call indication and system information.
With a built-in tone generator and integrated loudspeaker, it ensures clear
acoustic signals and announcements in hospital corridors or staff rooms.
General Description
The Alpha 16 corridor display is available in two models:
single-sided (77 0150 00) and
double-sided (77 0160 00).
It connects directly to the group bus (OSYnet) and features a
self-luminous red LED display for maximum visibility.
Longer text messages are shown via automatic ticker scrolling.
Technical Specifications
- 16 alphanumeric digits, red LED, self-luminous
- Text ticker function for longer messages
- Integrated tone generator for call signals
- Built-in loudspeaker for announcements or tones
- Comes with ceiling holder for easy installation
- Interface: OSYlink-Corridor display integrated
- Direct connection to OSYnet group bus
- Connection cable: 1.8 m, free wire ends
Technical Data
- Dimensions (HxWxD):
- 77 0150 00: 120 × 765 × 35 mm
- 77 0160 00: 120 × 765 × 125 mm
- Weight:
- 77 0150 00: approx. 3 kg
- 77 0160 00: approx. 6 kg
- Digit height: 50 mm
- Reading distance: 25 m (DIN compliant)
- Color: RAL 9016 traffic white
- Housing: Aluminium, Front panel: Acrylic glass
- Power supply: 24 V DC
- Supply current:
- 77 0150 00: 300 mA (avg.)
- 77 0160 00: 600 mA (avg.)
Order Information
| Order Number | Product Name | Notes |
|---|---|---|
| 77 0150 00 | Corridor display Alpha 16 | Single-sided design |
| 77 0160 00 | Corridor display Alpha 16 | Double-sided design |
