General Description

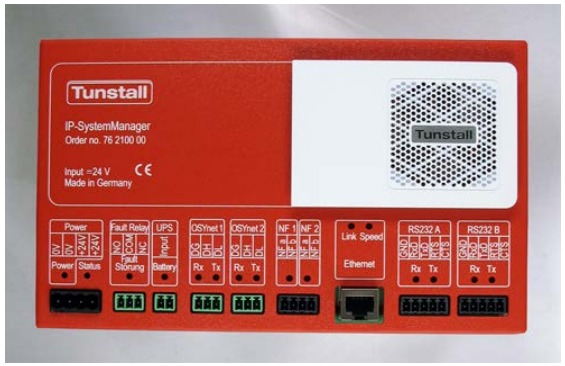

Designed for hospitals and healthcare facilities, the IP-SystemManager
controls the nurse call operation and voice communication of one ward
(organizational group). Multiple units can be interconnected via IP networks
to manage larger systems with up to 64 IP-SystemManagers.

Each unit uses digital voice processing and VoIP technology to deliver
excellent communication quality. Functional security is guaranteed through constant
self-monitoring of all components and interfaces.

System and Function Modules

• Supports various system and function modules, from basic nurse call features to complex interfaces
• Modules are purchased separately and can be added at any time
• Expandable architecture for future requirements
• Extra IP-SystemManager required for connecting medical systems or fire alarms

System Design

• Can operate in standalone mode for a single ward
• Supports up to 64 interconnected IP-SystemManagers via LAN
• Integration with dedicated IP networks or existing infrastructures (DIN VDE 0834 compliant)
• Flexible organization of wards and groups, independent of physical layout
• System-wide and local status monitoring with dedicated displays

Functional Security

• Continuous monitoring of all connected components and network links
• In case of failure, other IP-SystemManagers continue operation
• Affected ward switches to minimum operation (room lamps + local call cancellation)
• Core nurse call functions are always retained, even if connected systems fail
