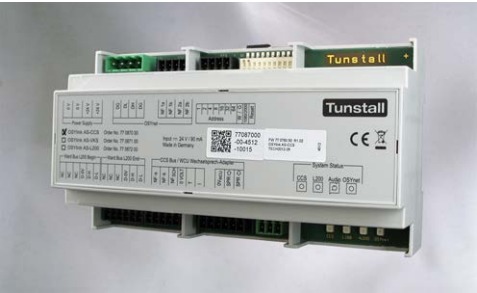

OSYlink AS-CCS (77 0870 00)
The OSYlink AS-CCS is a universal interface that enables
the compatible connection of CCS systems to the
Flamenco system family.
It allows the integration of older CCS-based wards into a modern Flamenco
environment by transforming data and speech signals into compatible formats.
General Description
Designed for installation in ward distribution cabinets or installation rooms,
the OSYlink AS-CCS ensures smooth interoperability between legacy CCS
infrastructure and Flamenco nurse call systems.
The operating mode can be easily adjusted using a coding switch.
Important: Due to the complexity of existing CCS projects
(custom cabling, history, and special solutions), the functionality
must be checked individually before integration.
For connecting a half-duplex speech system, an additional speech amplifier
with power supply unit is required, controlled via the OSYlink AS-CCS contacts.
Specification
- Data and speech connection to the OSYnet
- Data and speech connection to the CCS bus
- Switching inputs/outputs for external speech amplifier control
- Conversion of all required system functions
- Configuration via OSYnet SystemOrganizer
- Operation and function status indicators
- Plug-in connections for easy installation
- Mounting on 35 mm top-hat rail
Technical Data
- Dimensions (HxWxD): 90 × 160 × 58 mm
- Colour: Light grey (RAL 7035)
- Housing material: Polycarbonate UL94 V-0
- IP code: IP 20
- Power supply: 24 V DC
- Max. supply current: 90 mA
Order Information
| Order Number | Product Name | Notes |
|---|---|---|
| 77 0870 00 | OSYlink AS-CCS | Universal CCS-to-Flamenco interface |
